The occurrence of uplifted crust marginal to linear belts of depressed crust forming intermountain basins like that of Clinton Lake, British Columbia, (Renaut 1994); the Salar Grande in the Altiplano "Puna" Plateau of the northern Chilean Andes (Alonso et al. 1991); Eastern Californian Death Valley (Spencer and Roberts 1998; and Roberts and Spencer 1998); Mongolia (David and Nicholas 1994); and Xinjiang (Jiang 1991)
The occurrence of internal drainage and/or limited access to open ocean waters as can be seen in the Aral Sea (Rubanov and Bogdanova 1987); Caspian Sea (Dzens-Litovskiy and Vasil'yev 1973); the early South (Trayner et al 1992) and North Atlantic (Carswell et al. 1990; Tanner 1995; El-Tabakh et al. 1997; and Koning 1998), Late Triassic and Early Jurassic of Gulf of Mexico (Cheong et al. 1992).

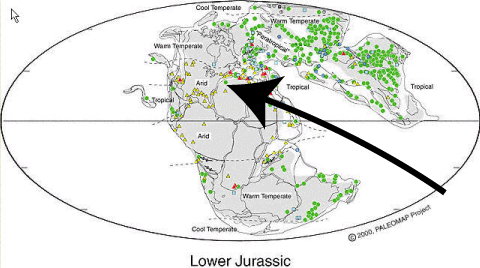

The Mesozoic sediments of the northern Atlantic (Carswell et al. 1990; Tanner 1995; El-Tabakh et al. 1997; and Koning 1998) exhibit the presence of an isolated linear belt of interior drainage with a limited or restricted entrance to the sea (Figure 1). Regional drainage tended to flow away from breakup margins and the air system was that of the arid tropics. There was a wide envelope of surrounding continents. Other similar extensional evaporite basins include the Mesozoic of the northern Gulf of Mexico (Cheong et al. 1992); the Mesozoic of the South Atlantic margins (Trayner et al 1992); the Mesozoic of the Yemen rift belt (Youssef 1998, Csato 1998; Csato and Kendall, 1997); the Mesozoic and Tertiary of Eritrea; the East African Rift; the Dead Sea (Neeve and Emery 1967; Kendall and Harwood 1996; Csato et al. 1997), and so on. Evaporite generation during collision of continental plates
The current Arabian Gulf and the underlying Late Mesozoic to Tertiary of the area (Murris 1980), the Fars of Iran (Buchbinder 1995; Aqrawi 1993; and Kashfi 1980) are stratigraphic sections that represent prime examples of a linearly depressed intercontinental compressional zone that has a history punctuated by limited access to the sea and repeated desert climates (Figure 2). This sea represents an isolated linear belt of interior drainage with a restricted entrance to the open ocean. Regional drainage tends to flow into the Arabian Gulf and the air system is that of the arid tropics. There is a wide envelope formed by the surrounding subcontinents of Arabia and Asia Minor.
Other comparable examples from collision margins include sections of the Silurian of the Michigan basin, which is situated on the Cratonic interior landward of the Appalachian Foreland basin (Briggs and Lucas 1954; Briggs and Briggs 1974; Nurmi and Friedman 1974; Gill et al. 1978; Shaver 1991); the Devonian of Western Canada and the Northwest USA where the sediments collected in the Cratonic interior landward of the Cordilleran Foreland basin (Whittaker and Mountjoy 1996; Kendall 1978; Wardlaw and Reinson 1971; and Klingspor 1969); the Pennsylvanian of the Paradox basin which is located in the Cratonic interior landward of the Cordilleran Foreland basin (Kendall 1988; Williams-Stroud 1994); the Permian of New Mexico and west Texas, which is located in the Cratonic interior landward of the Marathon Foreland basin (Ward et al. 1986); the Permian of the Zechstein basin which is located in the Cratonic interior landward of the Alpine Foreland basin (Strohmenger et al. 1996; Smith 1980; Wagner et al 1981; Goodall et al 1991); the Jurassic of the Neuquen basin of Argentina located in the Cratonic interior landward of the Andean Foreland basin (Barrio 1990); the Tertiary of the Mediterranean, which is a basin trapped when oceanic crust was caught between Africa and the Alpine chain (Schreiber 1975); and the Mesozoic and Tertiary of the final phases of the Tethys Sea where the Cratonic interior lies landward of the Alpine/Himalayan Foreland basin in the Caspian Sea (Dzens-Litovskiy and Vasil'yev 1973) and Aral Sea (Rubanov and Bogdanova 1987).

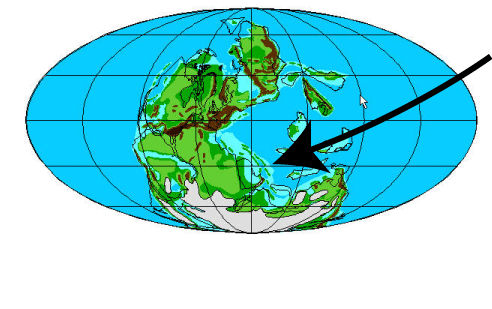

In contrast to the above examples are the Late Paleozoic Khuff Formation of Saudi Arabia (Charara et al. 1991; Al-Jallal 1991, Stump and van der Eem 1994; and Al-Aswad 1997) and the UAE and Oman (Murris 1980) (Figure 3) and early Mesozoic Arab D and Hith Anhydrite Formations of Saudi Arabia, southern Kuwait, and western Iran (Murris 1980; Alsharhan and Magara 1994; and De Matos 1994) (Figure 4).

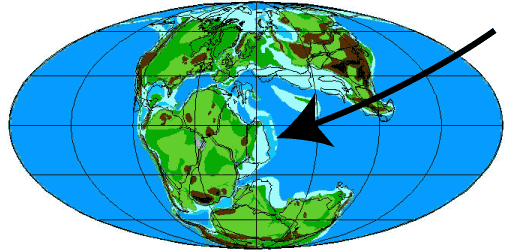

strata.org/CuteSoft_Client/CuteEditor/Load.ashx?type=image&file=anchor.gif); background-repeat: no-repeat;">(Figure 4) Setting of the Late Jurassic Arab D and Hith Anhydrite formations of Saudi Arabia (Golonka et al 1994) which contain evaporites formed when barriers were formed by the movement of what was an original Hercynian horst and block terrain adjacent to the southern shore of the Tethys Ocean and the accumulation of sediment over them. These barriers limited access to the sea punctuating the geological record with evaporites when there was an associated occurrence of repeated desert climates. These bodies of the seawater occurred as isolated linear belts of interior drainage with restricted entrance to the open Tethys Ocean. Regional drainage probably tended to flow into this basin, and the air system was that of the arid tropics. There was a wide envelope formed by the surrounding subcontinents of Arabia and Africa.
In both these cases the sedimentary sections of the Arabian Gulf contain evaporites formed when barriers were formed by the movement of what was an original Hercynian horst and block terrain adjacent to the southern shore of the Tethys Ocean. These barriers accumulated sediment over them and limited access to the sea. This lead to the punctuation of the geological record with evaporites when there was an associated occurrence of repeated desert climates. These bodies of the seawater occurred as isolated linear belts of interior drainage with restricted entrance to the open Tethys Ocean. Regional drainage probably tended to flow into this basin, and the air system was that of the arid tropics. There was a wide envelope formed by the surrounding subcontinents of Arabia and Africa.
Another comparable feature is that of the Lower Cretaceous Ferry Lake Anhydrite of Alabama and Florida (Raymond 1995), which formed behind a carbonate barrier with limited access to the Gulf of Mexico.
The recognition of the strong tie between plate setting and climate can be used to predict the occurrence of evaporites in desert settings. The water resources in these areas of rain shadow and their proximity to the continental margins of lakes and narrow marine bodies match those of the past and lead to the accumulation of evaporites. Here the earth's geologic record provides a strong message that the effects of desertification suggest that evaporites occur in settings associated with the initial phases of continental break up and continental collision.
Al-Aswad, A. A., 1997, stratigraphy, sedimentary environment and depositional evolution of the Khuff Formation in south-central Saudi Arabia, Journal of Petroleum Geology, 20 (3), p. 307-326.
Al-Jallal, Ibrahim A., 1991, Depositional environments, lithofacies types, and reservoir development of the Permian Khuff Formation in eastern Saudi Arabia, AAPG international conference; abstracts, AAPG Bulletin, 75 (8), p. 1401.
Alliey, W. M., Reilly T. E., and Franke, O. L., 1999, Sustainability of ground-water resources; USGS Circular 1186, 79P.
Alonso, Ricardo N., Jordan, Teresa E., Tabbutt, Kenneth T., Vandervoort, Dirk S., 1991, Giant evaporite belts of the Neogene Central Andes, Geology, 19 (4), p. 401-404.
Alshahran, Abdulrahman, and C.G.St.C.Kendall, 1986, Pre-Cambrian to Jurassic rocks of the Arabian Gulf and adjacent areas: Their facies, depositional setting and hydrocarbon habitat., Am. Assoc. Petroleum Geol. Bull., v. 70, p. 977-1002.
Alsharhan, A. S., and Magara, K., 1994, The Jurassic of the Arabian Gulf basin; facies, depositional setting and hydrocarbon habitat Embry, A. F., Beauchamp, B., and Glass, D. J. (editors), Pangea; global environments and resources, Memoir - Canadian Society of Petroleum Geologists, 17, p. 397-412.
Alsharhan, Abdulrahman. S., and Christopher G. St. C. Kendall, 1994, Depositional setting of the Upper Jurassic Hith Anhydrite of the Arabian Gulf: an analogue to Holocene evaporites of the United Arab Emirates and Lake MacLeod of Western Australia: American Association of Petroleum Geologists Bulletin, v. 78, p. 1075-1096.
Aqrawi, A. A. M., 1993, Miocene evaporitic sequence of the southern Mesopotamian basin, Marine and Petroleum Geology, 10 (2), p. 172-179.
Barrio, Claudio A., 1990, Late Cretaceous-early Tertiary sedimentation in a semi-arid foreland basin (Neuquen Basin, western Argentina), Sedimentary Geology, 66 (3-4), p. 255-275.
Briggs, L. I. And Briggs, D. Z., 1974, Reefs and evaporites in the Michigan basin, Geotimes, 19 (8), p. 31.
Briggs, Louis Isaac, Jr., and Lucas, Peter T., 1954, Mechanism of Salina salt deposition in the Michigan basin, Geological Society of America Bulletin, 65 (12, Part 2), p. 1233.
Buchbinder, B. 1995, Miocene carbonates and evaporites of the Middle East; geodynamics and eustatic controls, in Arkin, Yaacov, and Avigad, Dov (editors), Annual Meeting - Israel Geological Society, 1995, p. 14
arswell, A. B., Koning, T., and Hibbs, D. C., 1990, Structural and stratigraphic evolution of the East Georges Bank basin, offshore Nova Scotia, Canada, AAPG annual convention with DPA/EMD divisions and SEPM, an associated society; technical program with abstracts, AAPG Bulletin, 74 (5), p. 625-626.
Charara, M., Loutfi, G., and Nurmi, R., 1991, Characteristics of entrapment in the Khuff formation around the Arabian Platform; deposition, diagenesis, structure, and fracturing Anonymous, AAPG international conference; abstracts, AAPG Bulletin, 75 (8), p. 1408
Cheong, Dae-Kyo, Kendall,C. G.St.C., Stoudt, David L., and Bowen, Bruce E.; 1992, Analysis of Jurassic Marine sedimentary sequence and hydrocarbon occurence in the U.S.Gulf Coast Basin; Ocean Research, v.14, n.2, p.89-109.
Csato Istvan, Christopher G. St. C. Kendall, Alan E. M. Nairn and Gerald R. Baum, 1997, Sequence Stratigraphic Interpretations in the Southern Dead Sea basin, Israel, Geol Soc Am. Bulletin, v 108, 1485-1501.
Csato, I., 1998, Structural and sequence stratigraphic framework of the Mintaq basin, Yemen, The 1st Yemen Oil and Gas Conference '98, Sana'a, Yemen.
Csato, I., and C. G. St. C. Kendall, 1997, Stratigraphic architectural patterns and hydrocarbon plays in salt withdrawal basins within rift settings - examples from the Middle East, 1997 American Association of Petroleum Geologists Annual Convention, Dallas, Official Program, Abstracts, p. A24-A25
Dali, Ayad H., 1975, Depositional environment of the upper Silurian of the Michigan basin, p. 44.
De Matos, J. E., 1994, Upper Jurassic-Lower Cretaceous stratigraphy; the Arab, Hith and Rayda formations in Abu Dhabi Simmons, M. D., and Austin, Ronald L. (editors), Micropaleontology and hydrocarbon exploration in the Middle East (editor), British Micropaleontological Society Publication Series, p. 81-111.
Dzens-Litovskiy, A. I., and Vasil'yev, G. V., 1973, Geologic conditions of formation of bottom sediments in Karabogaz-Gol in connection with fluctuations of the Caspian Sea level [with comment], Marine Evaporites; Origin, Diagenesis, and Geochemistry, Dowden, Hutchinson & Ross, Stroudsburg, Pennsylvania, p. 9-16.
El-Anbaawy, Mohamed I. H., Al-Aawah, Mohammed A. H., Al-Thour, Khalid A., Tucker, Maurice E., 1992, Miocene evaporites of the Red Sea Rift, Yemen Republic; sedimentology of the Salif halite, Sedimentary Geology, 81 (1-2).
El-Tabakh, Mohamed, Riccioni, Rita, Schreiber, B. Charlotte, 1997, Evolution of Late Triassic rift basin evaporites (Passaic Formation); Newark basin, eastern North America, Sedimentology, 44 (4), p. 767-790.
Gill, D., Briggs, L. I., and Briggs, D., 1978, The Cain Formation; a transitional succession from open marine carbonates to evaporites in a deep water basin, Silurian, Michigan basin, International Congress on Sedimentology Congres International de Sedimentologie (10, Vol. 1 (A-L)), p. 244-245.
Glennie, K. W., 1997, Quaternary Arabia; it is a palaeogeographic and climatic analogue of NW Europe's Permian upper Rotliegend 2?, Journal of Petroleum Geology 20 (1), p. 100-104.
Golonka, J., Ross, M.I., and Scotese, C.R., 1994. Phanerozoic paleogeographic and paleoclimatic modeling maps, in A.F. Embry, B. Beauchamp, and D.J. Glass (eds), PANGEA: Global Environments and Resources, Can. Soc. Petrol. Geol., Memoir 17, pp. 1-48.
Goodall, I. G. Harwood, G. M., Kendall, A. C., McKie, T., and Tucker, M. E., 1991, Discussion on sequence stratigraphy of carbonate-evaporite basins; models and application to the Upper Permian (Zechstein) of Northeast England and adjoining North Sea, Journal of the Geological Society of London, 149, Part 6, p. 1050-1054.
Howell, John, and Mountney, Nigel, 1997, Climatic cyclicity and accommodation space in arid to semi-arid depositional systems; an example from the Rotliegend Group of the UK southern North Sea, in Ziegler, Karen, Turner, Peter and Daines, Stephen R. (editors), Petroleum geology of the southern North Sea; future potential, Geological Society Special Publications, 123, p. 63-86.
Kashfi, Mansour S., 1980, stratigraphy and environmental sedimentology of lower Fars Group (Miocene), South-Southwest Iran, AAPG Bulletin, 64 (12), p. 2095-2107.
Kendall, A. C. 1978, carbonate buildup-evaporite relations in Middle Devonian of Saskatchewan; reinterpretation, AAPG Bulletin, 62 (5), p. 885-886.
Kendall, Alan C. and Harwood, Gillian M., 1996, Marine evaporites; arid shorelines and basins in Reading, H. G. (editor), Sedimentary environments; processes, facies and stratigraphy, 3 ed., p. 281-324.
Kendall, Alan C., 1988, Aspects of evaporite basin stratigraphy, in Schreiber, B. Charlotte (editor), Evaporites and hydrocarbons, p. 11-65.
Kendall, Alan C., 1992, Evaporites, Walker, R. G., James, Noel P. (editors), Facies models; response to sea level change, p. 375-409.
Kendall, Christopher G. St. C., Paul Lake, H. Dallon Weathers III, Venkat Lakshmi, John Althausen, and A.S. Alsharhan, 2002, "Evidence Of Rain Shadow in the Geologic Record: Repeated Evaporite accumulation at Extensional and Compressional Plate Margins", In Proceeding Of The International Conference On Desertification, Dubai p.
Klingspor, A. M., 1969, Middle Devonian Muskeg evaporites of western Canada, The American Association of Petroleum Geologists Bulletin, 53 (4), p. 927-948.
Kocurek, Gary, Interpretation of ancient eolian sand dunes, Annual Review of Earth and Planetary Sciences, 19, p. 43-75
Koning, Tako, 1998, Stratigraphic correlations and analogues between the East Georges Bank Basin, offshore Nova Scotia, and the Triassic and Jurassic outcrops in the High Atlas Mountains, Morocco, AAPG international conference and exhibition; abstracts, AAPG Bulletin, 82 (10), p. 1930.
Murris, R. J., 1980, Middle East: stratigraphic evolution and oil habitat: AAPG Bulletin v. 64, 597-618.
Nanson, Gerald C. and Price, David M., 1998, Quaternary change in the Lake Eyre Basin of Australia; an introduction, in Nanson, Gerald C. and Price, David M. (editors), Quaternary environmental changes in the Lake Eyre basin of central Australia, Palaeogeography, Palaeoclimatology, Palaeoecology, 144 (3-4), p. 235-237.
Neev, D., and Emmery, K. O., 1967, The Dead Sea; depositional process and environments of evaporites, Bulletin Geological Survey of Israel, 41.
Nurmi, R. D. and Friedman, G. M., 1974, The Salina Group of the Michigan basin; shallow-water and sabkha deposition, Abstracts with Programs - Geological Society of America, 6 (7), p. 1052.
Prothero D. R. and Schwab F. 1996, Sedimentary Geology, An introduction to sedimentary rocks and stratigraphy, W. H. Freeman, New York 575p.
Raymond, Dorothy E., 1995, The Lower Cretaceous Ferry Lake Anhydrite in Alabama, including supplemental information on the overlying Mooringsport Formation and the petroleum potential of the Lower Cretaceous, Circular - Geological Survey of Alabama, 183, pp.66.
Renaut, Robin W., 1994, carbonate and evaporite sedimentation at Clinton Lake, British Columbia, Canada Rosen, Michael R. (editor), Paleoclimate and basin evolution of playa systems, Special Paper - Geological Society of America, 289, p. 49-68.
Roberts, S. M., and Spencer, R. J., 1998, A desert responds to Pleistocene climate change; saline lacustrine sediments, Death Valley, California, in
Alsharhan, A. S. Glennie, K. W., G. L. Whittle and C. G. St. Kendall (editors), Quaternary deserts and climatic change, A.A. Balkemea, Rotterdam p. 357-370.
Schreiber, B. Charlotte, 1975, Upper Miocene (Messinian) evaporite deposits of the Mediterranean basin and their depositional environments, Doctoral from Rensselaer Polytechnic Institute, Troy, NY, United States p. 499.
Scotese, C.R., and Sager, W.W., 1988. Mesozoic and Cenozoic Plate Tectonic Reconstructions. Tectonophysics, 155: 27-48.
Shaver, Robert H., 1991, A history of study of Silurian reefs in the Michigan Basin environs Catacosinos, Paul A. and Daniels, Paul A., Jr. (editors), Early sedimentary evolution of the Michigan basin, Special Paper - Geological Society of America, 256, p. 101-138.
Smith, Denys B., 1980, The evolution of the English Zechstein basin, in Fuechtbauer, Hans, Peryt, Tadeusz M. (editors), The Zechstein Basin, with emphasis on carbonate sequences, Contributions to Sedimentology (9), p. 7-34.
Spencer, R. J., and Roberts, S. M., 1998 Magnitude of climate change in Death Valley, California, U.S.A., between 100 and 200 ka B.P.; comparison with modern systems in Alsharhan, A. S. Glennie, K. W., G. L. Whittle and C. G. St. Kendall (editors), Quaternary deserts and climatic change, A.A. Balkemea, Rotterdam p. 371- 380.
Strohmenger, Christian, Voigt, Ellen, and Zimdars, Johannes, 1996, Sequence stratigraphy and cyclic development of basal Zechstein carbonate-evaporite deposits with emphasis on Zechstein 2 off-platform carbonates (Upper Permian, Northeast Germany) in Gaupp, Reinhard, and van de Weed, Andrew A. (editors), Approaches to Sequence Stratigraphy, Sedimentary Geology, 102 (1-2), p. 33-54.
Stump, T. E., and van der Eem, J. G., 1994, Overview of the stratigraphy, depositional environments and periods of deformation of the Wajid outcrop belt, southwestern Saudi Arabia in Al-Husseini, Moujahed I. (editor), Geo '94; the Middle East petroleum geosciences; selected Middle East papers from the Middle East geoscience conference, p. 867-876.
Tanner, Lawrence H., 1995, Paleoclimatic analysis of the Upper Triassic-Lower Jurassic Blomidon formation, Fundy basin, Nova Scotia, Geological Society of America, Northeastern Section, 30th annual meeting, Abstracts with Programs - Geological Society of America, 27 (1), p. 86.
Trayner, P., Doherty, M., Edwards, A., Grant, G., McKenna, J., Philip, P., Wilson, N., 1992, Regional seismic interpretation offshore Gabon; results and implications for stratigraphic development, Curnelle, R. (editor), Geologie Africaine; 1er colloque de Stratigraphie et de paleogeographie des basins sedimentaires ouest-africains; 2e colloque africain de Micropaleontologie; African geology; First meeting on the stratigraphy and paleogeography of West Africa sedimentary basins; Second African meeting on Micropaleontology, Bulletin des Centres de Recherches Exploration-Production Elf-Aquitaine. Memoire, 13, p. 177.
Wagner, Ryszard (Geol. Inst., Warsaw, Poland), Peryt, Tadeusz M., Piatkowski, and Tomasz S., 1981, The evolution of the Zechstein sedimentary basin in Poland, in Pakulska, Z., and Kuna, M. (editors), Proceedings/International symposium, Central European Permian, p. 69-83.
Wagner, Ryszard, Peryt, Tadeusz M., Piatkowski, and Tomasz S., 1981, The evolution of the Zechstein sedimentary basin in Poland, in Pakulska, Z., and Kuna, M. (editors), Proceedings/International symposium, Central European Permian, p. 69-83.
Ward, R., C. G. St. C. Kendall, and P.M. Harris, 1986, Hydrocarbon occurrence in Guadalupian sediments, the Permian basin, West Texas and New Mexico. Am. Assoc. Petroleum Geol. Bull., v. 70, p. 239-262.
Wardlaw, N. C., and Reinson, G. E., 1971, Carbonate and evaporite deposition and diagenesis, middle Devonian Winnipegosis and Prairie evaporite formations of south-central Saskatchewan, The American Association of Petroleum Geologists Bulletin, 55 (10), p. 1759-1786.
Whittaker, Steve G. and Mountjoy, Eric W., 1996, Diagenesis of an Upper Devonian carbonate-evaporite sequence; Birdbear Formation, southern Interior Plains, Canada, Journal of Sedimentary Research, 66 (5), p. 965-975.
Williams-Stroud, Sherilyn C., 1994, The evolution of an inland sea of marine origin to a non-marine saline lake; the Pennsylvanian Paradox salt, in Renaut, Robin W., and Last, William M. (editors), Sedimentology and geochemistry of modern and ancient saline lakes, Special Publication - SEPM (Society for Sedimentary Geology), 50, p. 293-306.
Woods, P. H., Walker, G. R., and Allison, G. B., 1990, Estimating groundwater discharge at the southern margin of the Great Artesian Basin near Lake Eyre, South Australia, in Ventriss, H. (convener), Proceedings of the International conference on Groundwater in large sedimentary basins, Australian Water Resources Council Conference Series, 20, p. 298-309.
Youssef, El Sayed A. A., 1998, Sequence stratigraphy of the Upper Jurassic evaporite-carbonate sequence at the western area of Wadi Al-Jawf-Marib Basin, Yemen, Carbonates and Evaporites, 13 (2), p. 168-173.
