A Basic Classification Derived From The Simple Ideal Model
~A Basic Sedimentary Rock Classification~
A good classification is based on how rocks form and how they are related to each other. The most general theoretical model we have for sedimentary rocks is the Simple Ideal Model. We want to group together rocks that form by similar processes, however, sedimentary rocks form from such a diversity of processes that straight forward classifications are difficult. They are unlike igneous rocks where a relatively straight forward Texture And Composition classification leading directly to interpretation is possible.
~Reasoning Behind the Basic Classification~
The three attractors in the simple ideal model are not isolated, however; each one stands for a class of weathering products. For example:

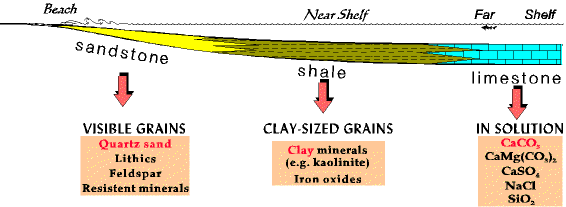

On the chart below we can see these additional weathering products.
- Quartz Sandstone = all visible grains, including such ones as incompletely weathered feldspar from the Granodiorite in the simple ideal model.
- Shale = all Clay sized grains (Clay is a generic name; there are many kinds of Clay minerals as well as other minerals that are Clay sized)
- Limestone = all dissolved minerals, including not only Calcite CaCO3, but also Halite (table salt; NaCl), and Gypsum (CaSO4 . H2O) among others.
|Clay is a mineral that forms from the weathering of feldspars such as Orthoclase. Clay is extremely fine grained; it is the mud on your shoes, or the mud (suspended Clay) in a river or pond. When Clay is deposited it becomes the rockshale
) is a mineral with rhombohedral cleavage that reacts with dilute hydrochloric acid. As a sedimentary mineral it exists either as Micrite
(" lime mud", that is as fine grained as Clay
) or large pieces such as animal skeletons. These together form the rock Limestone
sand is Quartz
sand. It is released as grains from the parent rock by weathering, and after that is little changed. See the grains in this Alkali Granite
. All but the Quartz
will weathering into something else.
In addition, some mineral names also refer to the rock, so Gypsum
the mineral is also Gypsum
the rock. Sometimes we also make a distinction, such as Dolomite
the mineral and dolostone the rock, or Halite
the mineral and Rock Salt
Sedimentary rocks are generally divided into three great categories, siliciclastic (or simply, clastic) rocks, chemical rocks and biochemical rocks. Their relationships to the three divisions from the simple ideal model are shown in the figure below. Observe how visible grains and Clay sized grains mix together to form clastic rocks, while minerals in solution split to form chemical and biochemical rocks.
(Silici)Clastic rocks are composed of weathering products that do not dissolved in water, have silica (SiO2) as one of their major components, and are transported either by rolling along the bottom, or in suspension. Because of this the VISIBLE GRAIN and Clay SIZED GRAIN weathering products in the chart above tend to be mixed, and deposited together. So we group them together as SILICICLASTIC rocks. (Further Explanation).
Minerals IN SOLUTION on the other hand tend to be deposited together, and are not generally deposited in the presence of siliciclastic rocks. Indeed, these rocks are so different from clastic rocks that geologists often specialize in studying either one group or the other. To deposit minerals that are in solution, they either precipitate directly from sea water (usually because it is evaporating and concentrating the salts) - CHEMICAL ROCKS or " plants" and " animals" extract the dissolved minerals from the sea water to make skeletons Their skeletons eventually become part of the sediment as BIOCHEMICAL ROCKS. Thus, minerals in solution have two categories.
Note that we still end up with a classification with three main categories, it is just a slightly different three categories than the simple ideal model.
Chemical/biochemical rocks fall into several groups, depending on how they form.
s: These are composed of the mineral Calcite
) and are thus all known as Carbonates
. Note on the chart that there are many of these, that they form by both chemical and biochemical processes, and that they tend to be mixed together in various combinations in the rocks. They are extremely abundant and important.
OTHER CHEMICAL ROCKS:
These rocks fall into two categories. Chert
is a siliceous rock (composed of SiO2
) that forms from the recrystalized skeletons of " animals " (single celled radiolarians, and glass sponges) or single celled " plants " (diatoms, silicoflagellates). And although the silica comes from skeletons to become Chert
it must be chemically recrystallized, thus putting it in the chemical category. Rock Salt (Halite; NaCl) and Gypsum (CaSO4 . H2O) originally are dissolved in the sea water, thus making the sea salty. When sea water evaporates in a closed area, such as a lagoon, the salt concentration becomes very high, supersaturated, and precipitates out. The process is common in desert areas, with examples today in the Red Sea and Dead Sea in the Middle East.
OTHER BIOCHEMICAL ROCKS: Peat and Coal because they come from plant remains are biochemical rocks, but unlike all the other chemical/biochemical rocks Peat and Coal always form in the presence of clastic rocks - sandstones and Shales.
This discussionillustrates part of the difficulty of developing a completely consistent classification. Sedimentary rocks form in so many different ways, from so many different processes that coming up with one scheme that is inclusive and yet straight forward is not easy. There always seem to be exceptions to the rule that have to have to be explained individually.
~(Silici) Clastic Rocks~
Clastic rocks (sandstones, Shale
s, etc.) are classified on two criteria - texture
(grain size), and composition
(that is, QFL
is both fine grained, and composed of Clay
, so the name "Shale
" incorporates both properties of texture and composition.
For the coarser sizes, where the mineral grains can be seen by eye or with a handlens, a complete name consists of two parts. For example, an " arkose sandstone " is a rock composed of sand sized particles, and a large percentage of those particles are composed of feldspar.
Clastic particles are divided into size categories based on the WENTWORTH SCALE. This scale has been in use for over a hundred years and is universally recognized. The middle size is 2 mm, the boundary between sand and gravel. Note that the size categories get geometrically larger, and smaller, from 2 mm. Sand, for example, ranges from 1/16 mm to 2 mm, while granules range from 2 mm to 4 mm, and pebbles from 4 mm to 64 mm.
Contributed by Lynn Fichter
