Well log correlation and sequence stratigraphic interpretation using SP & RES logs.

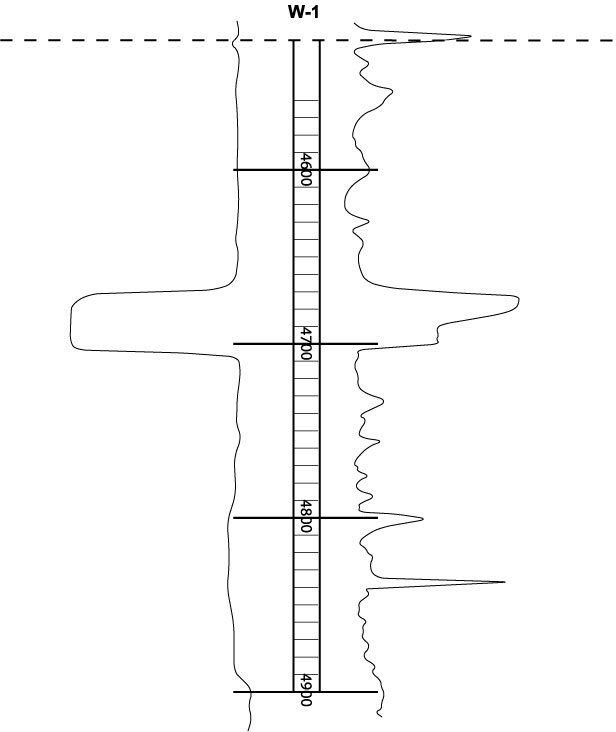

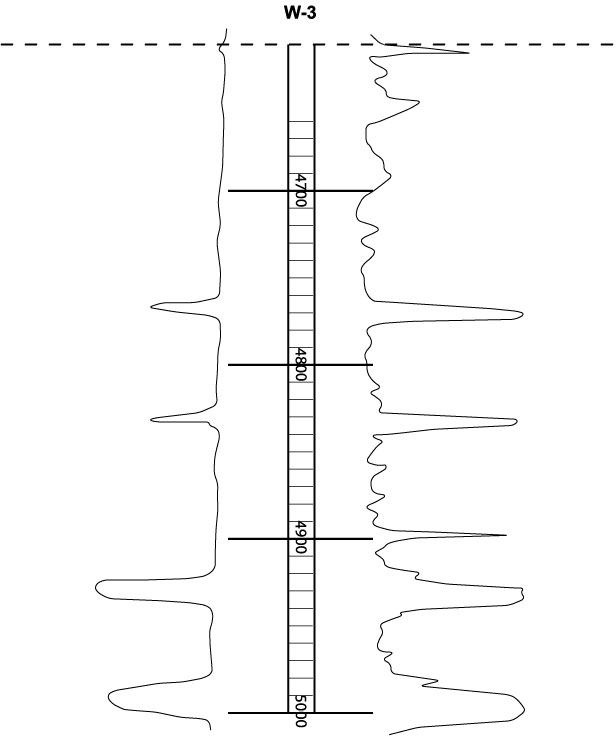

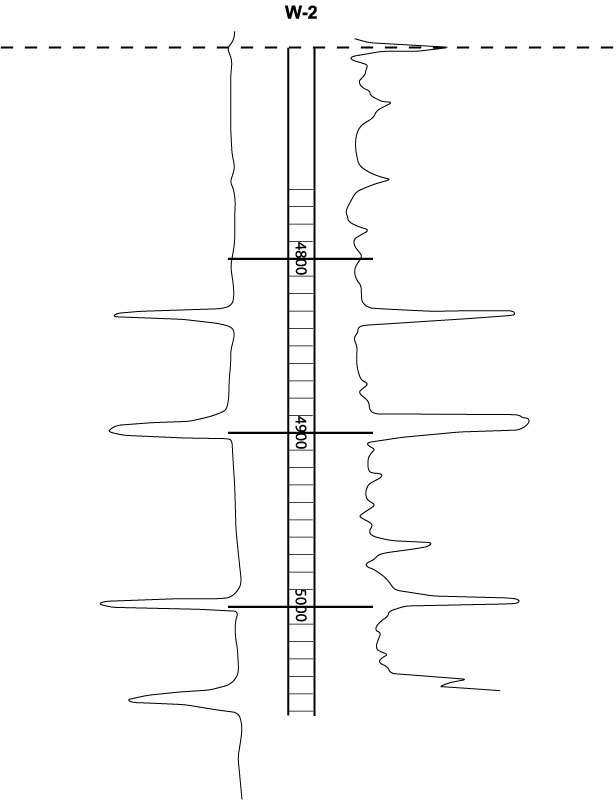

You are provided with a basemap locating three wells (W-1, W-2, W-3). Each well has Spontaneous Potential and Resistivity logs that are used to correlate the wells. A pdf file containing all wells and a basemap can printed, reassembled and taped (PRINTABLE-EX-1). A reduced pdf file version can be also viewed/and or printed (VIEW-EX-1). These well logs are flattened on the top of a major transgressive surface (TS) on the silt marking the contact between the La Pascua below and the overlying Roblecito Formation.


Utilize the Gulf Coast slip-slide method to help you match the log sections and identify the same sections on the various wells.

Color sands yellow and shales green.

Correlate using the silts as markers.

  • For each parasequence identify the TSs (transgressive surfaces) and then correlate these on all the well logs provided. These transgressive correlation surfaces used in all the sets of exercises extend across the area penetrated by the wells, except where they are interrupted by the incision of local channels. These surfaces cap silty horizons that are equated with surfaces of transgression (TS) that formed at wave base, and above, when the sea floor was reworked just following a sea level low.
  • Click on the thumbnail below to view the movie that demonstrates the technique that first uses the transgressive surfaces to build a framework of parasequences from these correlated surfaces and then infills the other surfaces between these as outlined below!

    Don't forget to use the left and right keyboard arrows to control the forward and backward motion of the movie so you can review this as you view it!
  • Normally radioactive peaks on Gamma Ray Logs, associated with mfs, are more extensive and would have been better correlation surfaces than the Transgressive surfaces but Gamma Ray Logs were not available for much of the Guarico Sub Basin. As in the movie above you should use geologic logic to infer the location of the Maximum Flooding Surface (mfs) and correlate these on all the well logs.
  • Thus as shown in the film make a cross-section first correlating the prominent silts for all the wells and then correlating the sands.
  • Pick base of massive sands and correlate these from well to well when they occur on other logs in other wells.
  • Identify the sequence boundaries (SB) at base of the massive sands and correlate these from well to well.
  • Identify all system tracts, including the incised valley, on all well logs.
  • Click on the thumbnial below to view the movie that tracks an interpretation of the character of the sedimentary fill of the Guarico Basin during the deposition of the La Pascua Formation.

  • Don't forget to use the left and right keyboard arrows to control the forward and backward motion of the movie so you can review this as you view it!

Make a cross-section tying the silts and shales of all the wells and finally the sand geometries. If you view the above movies and have read in the earlier sections related to the geologic setting of the La Pascua Formation and the introduction to the sequence stratigraphy of the La Pascua Formation. you will know something of the depositional setting of these rocks. You should combine this understanding of the regional geology with your understanding of vertical and lateral facies relationships in near shore clastic settings (eg. shoreline, beach, stacked beaches, tidal flats, deltas) and Walther's Law. You should use these to build a depositional model and a sequence stratigraphic interpretation of the well log section.
